A Module oa Transceiver, na sesebelisoa se kopanyang tšebetso ea transmitter le ea moamoheli ka sephutheloana se le seng. TheLi-module tsa transceiverNa lisebelisoa tsa elektroniki tse sebelisoang lits'ebetso tsa puisano ho fetisa le ho amohela data ka mefuta e fapaneng ea marang-rang. Hangata li sebelisoa ka lisebelisoa tsa marang-rang tse kang switches, li-cuorces tse ngata tsa marang-rang. E sebelisoa lits'ebetsong tsa marang-rang le puisano ho fetisa le ho amohela data mekhatlo e fapaneng ea mecha ea litaba, joalo ka likhoele tsa motlakase kapa likhoele tsa koporo. Poleloana "transceaver" e nkiloe ho kopanya "transmitter" le "moamoheli." Li-module tsa transceiver li sebelisoa haholo marang-rang a polokelo ea Ethernet, fiber Channers Sistella System, li-Telecommunication, litsi tsa data le likopo tse ling tsa marang-rang. Ba bapala karolo ea bohlokoa ho nolofalletsa phetiso e tšepahalang le e lebelo haholo ka mefuta e fapaneng ea mecha ea litaba.
Ts'ebetso ea mantlha ea mojule ea transcesiver ke ho fetola matšoao a motlakase ho matšoao a motlakase (maemong a Fiber oppexs) kapa vists tse thehiloeng ho koporo). E nolofalletsa puisano ea chelete ka ho fetisetsa data ho tsoa sesebelisoa sa mohloli ho sesebelisoa sa ho ea ho sesebelisoa sa ho khutlela ho sona.
Hangata medule ea transceiver e etselitsoe ho chesa, e bolelang hore e ka kenngoa kapa e tlositsoe lisebelisoa tsa marang-rang ntle le ho li tlosa tsamaisong. Karolo ena e lumella ho kenngoa habonolo, phetisetso le ho fetoha le maemo le ho feto-fetoha le maemo linthong tsa marang-rang.
Li-module tsa transceiver li tla ka lintho tse fapaneng tsa foromo, tse kang sebopeho se seng sa factor se bobebe), Qsfp28, le tse ling. Setho se seng le se seng sa foromo se etselitsoe litefiso tse ikhethang tsa data, libaka tsa phetisetso le litekanyetso tsa marang-rang. Li-brown tsa mylking ™ ea marang-rang tsa marang-rang tse tloaelehileng tse sebelisang mofuta ona oa mofuta ona oaLi-module tsa Transce Transceiver: Li-pluggable tse nyane tsa sebopeho (sfp), sfp +, qsfp (qsfp (qsfp

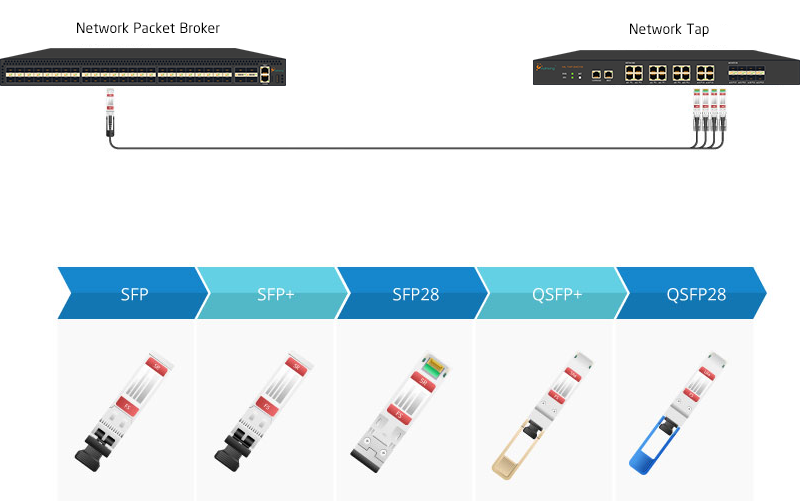

Mona ke lintlha tse ling, litlhaloso, le phapang ea mefuta e fapaneng ea SFP, SFP +, QSFP, le li-transceiver tsa Transcep28 tse fapanengLi-tap tsa netweke, Li-broker tsa pakete ea marang-rangmmeInline Network BypassBakeng sa lintlha tsa hau tsa mosa:
1- SFP (e nyane ea factor e nyane)
- SFP Blacces, hape e tsejoang e le SFS kapa Mini-Gbics, ke li-module tsa chelete tse ka tlase tse sebelisoang ka ethernet le Fiber.
- Ba ts'ehetsa litefiso tsa data ho tloha ho 100 Mbps ho isa ho 10 GBPs, ho latela sesosa se itseng.
- sfp li-curceivers tsa SFP li fumaneha bakeng sa mefuta e mengata ea fiber ea tlholeho, ho kenyelletsa le mokhoa oa masiba (sx), mokhoa o le mong (LR-li-moy).
- Ba tla ka mefuta e fapaneng ea khokahano e kang LC, SC, le Rj-45, ho latela litlhoko tsa marang-rang.
- Metsoako ea SFP e sebelisoa haholo ka lebaka la boholo ba tsona bo bonyenyane, ho feto-fetoha le ho itšireletsa.
2- SFP + (Enthape e nyane ea sebopeho)
- SFP + Litoro ke mofuta o ntlafalitsoeng oa li-module tsa SFP tse etselitsoeng litefiso tse phahameng tsa data.
- Ba ts'ehetsa litefiso tsa data ho fihlela ho tse 10 gbps mme li sebelisoa hangata ho 10 gigabit marang-rang.
- SFP + Libuti li Khutlela Ka morao ka SFP Slots, li lumella maemo a ho fallisoa habonolo le ho fetoha le maemo.
- Ba fumaneha bakeng sa mefuta e fapaneng ea fiber, ho kenyelletsa le mokhoa oa boholo-holo (SR), mokhoa o le mong (LR), e lebisang likharetene tsa koporo (Dac).
3- QSFP (Quad e nyane ea sebopeho) ea factor e nyane)
- li-transcep tsa QSFP ke lijo tsa mafura a phahameng haholo bakeng sa phetisetso ea data e phahameng.
- Ba ts'ehetsa litefiso tsa data ho fihlela ho 40 GBPS 'me li sebelisoa hangata libakeng tsa data le libaka tse phahameng tsa maemo.
- Litsela tsa QSFP li ka fetisa le ho fumana data ho feta li-frands tse ngata tsa fiber kapa copper ka nako e le ngoe, ho fana ka bandwidth e eketsehileng.
- li fumaneha ka mefuta e fapaneng ea li-vasfp-sr4
- Metsoako ea qsfp e na le sehokelo sa MPO / MTP bakeng sa likhokahano tsa fiber mme li ka tšehetsa likhoele tsa koporo ea koporo.
4- QSFP28 (Quad e nyane ea sebopeho sa factor-factor-factor-factor-factor
- Lipalosi tsa QSFP28 ke moloko o latelang oa li-module tsa QSFP, tse etselitsoeng litefiso tse phahameng tsa data.
- Ba ts'ehetsa litefiso tsa data ho fihlela ho 100 GBPS mme ba sebelisoa haholo marang-rang a setsi sa polokelo ea data.
- Liroboto tsa QSFP28 li fana ka matla a ho eketseha le tšebeliso ea matla a tlase a bapisoa le meloko e fetileng.
- li fumaneha ka mefuta e fapaneng ea li-vasfp28-sr4 (sr4 (sr4 (sr4 (sr4 (e le 'ngoe ea pele).
- li-module tsa QSFP28 li sebelisa mokhoa o phahameng oa ho feto-fetoha le mokhoa o tsoetseng pele oa ho sebetsa ho fihlela litekanyetso tse phahameng tsa data.
Metsoako ena ea lipapatso e fapana ka litefiso tsa data, ho etsa lintho, ho ts'ehetsa litekanyetso tsa marang-rang le maeto a phetisetso. SFP le SFP + li sebelisoa hangata bakeng sa lits'ebetso tsa lebelo le tlase, ha li-module tsa QSFP le QSFP28 li etselitsoe litlhoko tsa lebelo le phahameng. Ho bohlokoa ho nahana ka marang-rang a itseng le ho tsamaisa thepa le lisebelisoa tsa marang-rang ha o khetha mojule o loketseng oa transceiver.
