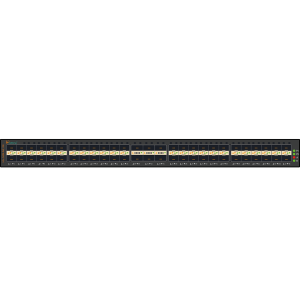

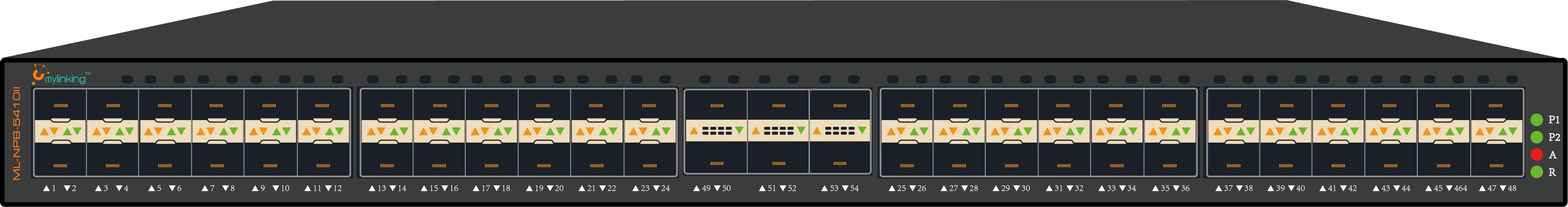

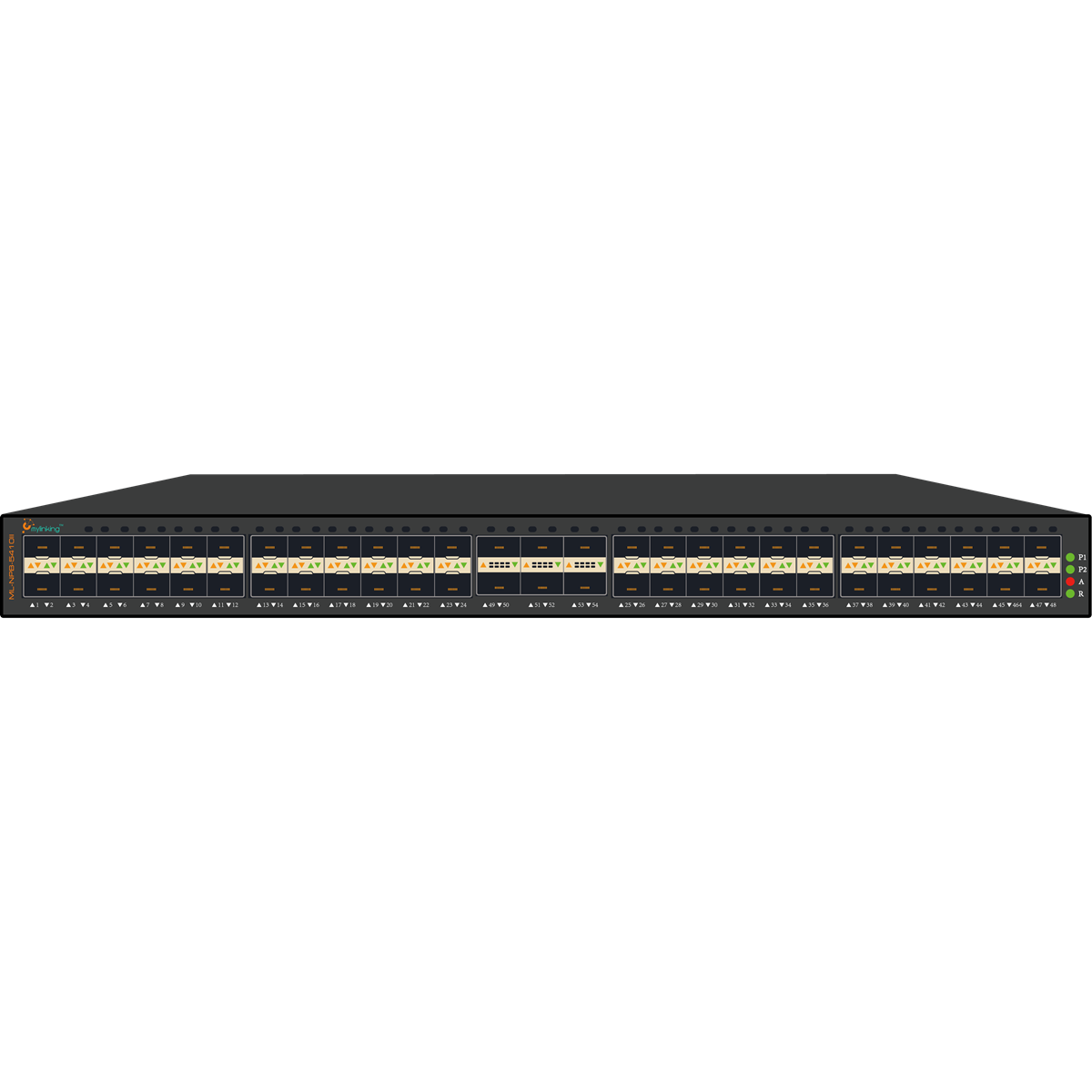

Morekisi oa Pakete ea Marang-rang ea Mylinking™ (NPB) ML-NPB-5410II
6*25/40/100GE QSFP28 hammoho le 48*1/10GE SFP+, Max 2.16Tbps
1-Likakaretso
● Taolo e felletseng ea pono ea sesebelisoa sa Traficc Capturing (6 * 40 / 100GE QSFP28, li-interface tsa 40GE / 100GE li ka aroloa ka li-interface tse 4 x 10GE / 25GE le li-port tse 48 * 1 / 10G SFP + kakaretso ea likou tse 54 tsa Rx / Tx duplex processing)
● Sesebelisoa se felletseng sa Taolo ea Kemiso ea Lintlha (ts'ebetso ea duplex Rx/Tx)
● Sesebelisoa se felletseng sa pele ho ts'ebetso le kabo bocha (bandwidth ea mahlakore a mabeli)2.16Li-tbps)
● Pokello le kamohelo e tšehetsoang ea data ea lihokelo ho tsoa libakeng tse fapaneng tsa likarolo tsa marang-rang
● Pokello le kamohelo e tšehetsoeng ea data ea lihokelo ho tsoa li-node tse fapaneng tsa ho tsamaisa switch
● Sephutheloana se setala se tšehelitsoeng se bokelletsoe, sa fumanoa, sa sekasekwa, sa akaretsoa ka lipalo-palo le ho tšoauoa
● E tšehetsoa ho phethahatsa liphutheloana tse ka holimo tse sa amaneng le ho fetisetsa sephethephethe sa Ethernet, e tšehetsa mefuta eohle ea li-protocol tsa liphutheloana tsa Ethernet, le liphutheloana tsa protocol tsa 802.1q/q-in-q, IPX/SPX, MPLS, PPPO, ISL, GRE, PPTP jj.
● E tšehelitse tlhahiso e tala ea pakete bakeng sa lisebelisoa tsa ho beha leihlo Tlhahlobo ea BigData, Tlhahlobo ea Protocol, Tlhahlobo ea Matšoao, Tlhahlobo ea Tšireletso, Tsamaiso ea Likotsi le sephethephethe se seng se hlokahalang.
● Tlhahlobo e tšehetsoang ea ho hapa lipakete ka nako ea sebele, tlhahlobo ea mohloli oa data
● Ho hlobola lihlooho tsa VxLAN, VLAN, MPLS, GTP, GRE, ERSPAN, e tšehelitse VxLAN, VLAN, MPLS, GTP, GRE, ERSPAN header stripping ho ea pele ka har'a pakete ea data ea pele.
Bokhoni ba Bohlale ba ho Sireletsa Sephethephethe
ASIC Chip Plus Multicore CPU
1080Gbps + 1080Gbpsbokhoni ba bohlale ba ho sebetsana le sephethephethe. E ka sebetsa ka botlalo, tlhahiso ea 1080Gbps + tlhahiso ea 1080Gbps
Ho hapa 100GE
6*40/100GE QSFP28, Li-interface tsa 40GE/100GE li ka aroloa ka li-interface tse 4 x 10GE/25GE le 48*.1/10G SFP+Kakaretso ea likou tse 54 tsa Rx/Tx duplex processing, ho fihlela ho2.16Transceiver ea data ea sephethephethe ea Tbps ka nako e le 'ngoe, bakeng sa ho fumana data ea marang-rang, e bonolo
Phetisetso ea Lintlha
Pakete e phetoa ho tloha koung e le 'ngoe ho ea likoung tse ngata tsa N, kapa likoung tse ngata tsa N tse kopantsoeng, ebe li phetoa ho likoung tse ngata tsa M
Kopano ea Lintlha
Pakete e phetoa ho tloha koung e le 'ngoe ho ea likoung tse ngata tsa N, kapa likoung tse ngata tsa N tse kopantsoeng, ebe li phetoa ho likoung tse ngata tsa M
Kabo ea Lintlha
E hlophisitse metdata e kenang ka nepo mme ya lahla kapa ya fetisetsa ditshebeletso tse fapaneng tsa data ho diphetho tse ngata tsa sebopeho ho ya ka lenane le lesweu, lenane le letsho kapa melao e hlalositsweng esale pele ke mosebedisi.
Ho Hloekisa Lintlha
E ka arola ka nepo melapo ea data e kenang le ho lahla kapa ho fetisetsa lits'ebeletso tse fapaneng tsa data ho li-interface tse ngata tsa tlhahiso ho latela melao ea lethathamo le letšo kapa la lethathamo le letšo. E tšehetsa metsoako e tenyetsehang ho latela mofuta oa Ethernet, VLAN, IP quintuple, le litšobotsi tsa melaetsa, e fihlela litlhoko tsa ho kenngoa ha lisebelisoa tse fapaneng tsa ts'ireletso ea marang-rang, tlhahlobo ea protocol, tlhahlobo ea matšoao le litlhoko tse ling tsa ho lekola sephethephethe.
Tekanyo ea Mojaro
Ho leka-lekanya mojaro oa hash algorithm e tšehetsoang ho ka etsoa ho latela litšobotsi tsa lera la L2-L4 ho netefatsa botšepehi ba nako ea phallo ea data e amoheloang ke sesebelisoa sa ho beha leihlo sa bypass. Ho phaella moo, litho tsa sehlopha sa koung ea ho fapoha li ka tsoa ka mokhoa o feto-fetohang (hokela DOWN) kapa tsa ikopanya (hokela UP) ha boemo ba sehokelo bo fetoha. Sehlopha sa kabo se aba sephethephethe ka boiketsetso ho netefatsa ho leka-lekanya mojaro o matla oa sephethephethe sa tlhahiso ea koung.
Ho bapisa UDB
E tšehetsa ho bapisa tšimo efe kapa efe ea senotlolo ho li-byte tse 128 tsa pele tsa molaetsa. Basebelisi ba ka fetola boleng ba offset, bolelele ba tšimo ea senotlolo, le litaba, 'me ba fumane leano la tlhahiso ea sephethephethe ho latela tlhophiso ea mosebelisi.
Phetiso ea faeba e le 'ngoe
Tšehetsa phetiso ea faeba e le 'ngoe ka sekhahla sa kou sa 10 G, 40 G, le 100 G ho fihlela litlhoko tsa ho amohela data ea faeba e le 'ngoe ea lisebelisoa tse ling tsa morao le ho fokotsa litšenyehelo tsa ho kenya thepa ea thuso ea faeba ha palo e kholo ea lihokelo e hloka ho hapuoa le ho ajoa.
Ho phatloha ha koung ea 40GE 100GE
E tšehetsa ho arohana ha kou, ke hore, e tšehetsa ho arola sebopeho sa 40GE/100GE ho li-interface tsa 4×10GE/25GE, e leng se finyellang phihlello ea mefuta e fapaneng ea lihokelo tsa mofuta oa kou ka mokhoa o tenyetsehang.
Ho Fela ha Sephutheloana sa Tunnel
E tšehetsa ho felisoa ha kotopo ea GRE, koung e 'ngoe le e 'ngoe ea sesebelisoa e ka hlophisoa ka bonngoe ka liaterese tse 16 tsa IP
Tlhahlobo ea Protocole ea Pakete
● E ka khetholla lipakete tse nang le mabitso a VLAN, QinQ, le MPLS
● E ka khetholla lipakete tsa IPv4/IPv6
● E ka khetholla lipakete tsa VxLAN, GRE, GTP, IPoverIP le lipakete tse ling tsa kotopo
● E ka khetholla lipakete tsa likaroloana tsa IP
● Lipakete tse ling li ka khetholloa ka ho sebelisa li-signature tsa offset tse ikhethileng (UDB)
Sebopeho sa FEC
Li-interface tsa 100GE li tšehetsa FEC (Tokiso ea Phoso ea Pele)
Ts'ebetso ea Li-tag
Tšehetsa ho hlobola mabitso a VLAN (ho fihlela ho mekhahlelo e 'meli)
Tšehetso ea ho tlosa mabitso a MPLS (ho fihlela ho mekhahlelo e 6)
Tšehetsa ho eketsa li-tag tsa VLAN
Boikemelo ba ho kenya Ethernet ka har'a capsulation
Tšehetsa ho phethahatsa phetisetso ea sephethephethe e sa itšetleheng ka lera le ka holimo la Ethernet, e tšehetsa ka ho hlaka liprothokholi tse fapaneng tsa Ethernet encapsulation, 'me e tšehetsa ka mokhoa o se nang sekoli liprothokholi tse fapaneng tse kang 802.1Q/Q-IN-Q, IPX/SPX, MPLS, PPPO, ISL, GRE, PPTP, jj.
Ho hlobola lihlooho tsa VxLAN, VLAN, MPLS, GTP, GRE, ERSPAN
E tšehelitse VxLAN, VLAN, MPLS, GTP, GRE, ERSPAN header stripping ho ea pele ka har'a pakete ea data ea pele.
Sethala sa Ponahalo ea Marang-rang a Mylinking™
Phihlello ea Sethala sa Taolo ea Ponahalo ea Mylinking™ Matrix-SDN e Tšehelitsoeng
Sistimi ea Matla a sa Fetoheng ea 1+1 (RPS)
Sistimi ea Matla a Phetisetso a Mabeli a Tšehetsoang a 1+1
Meaho e 3 e Tloaelehileng ea Ts'ebeliso

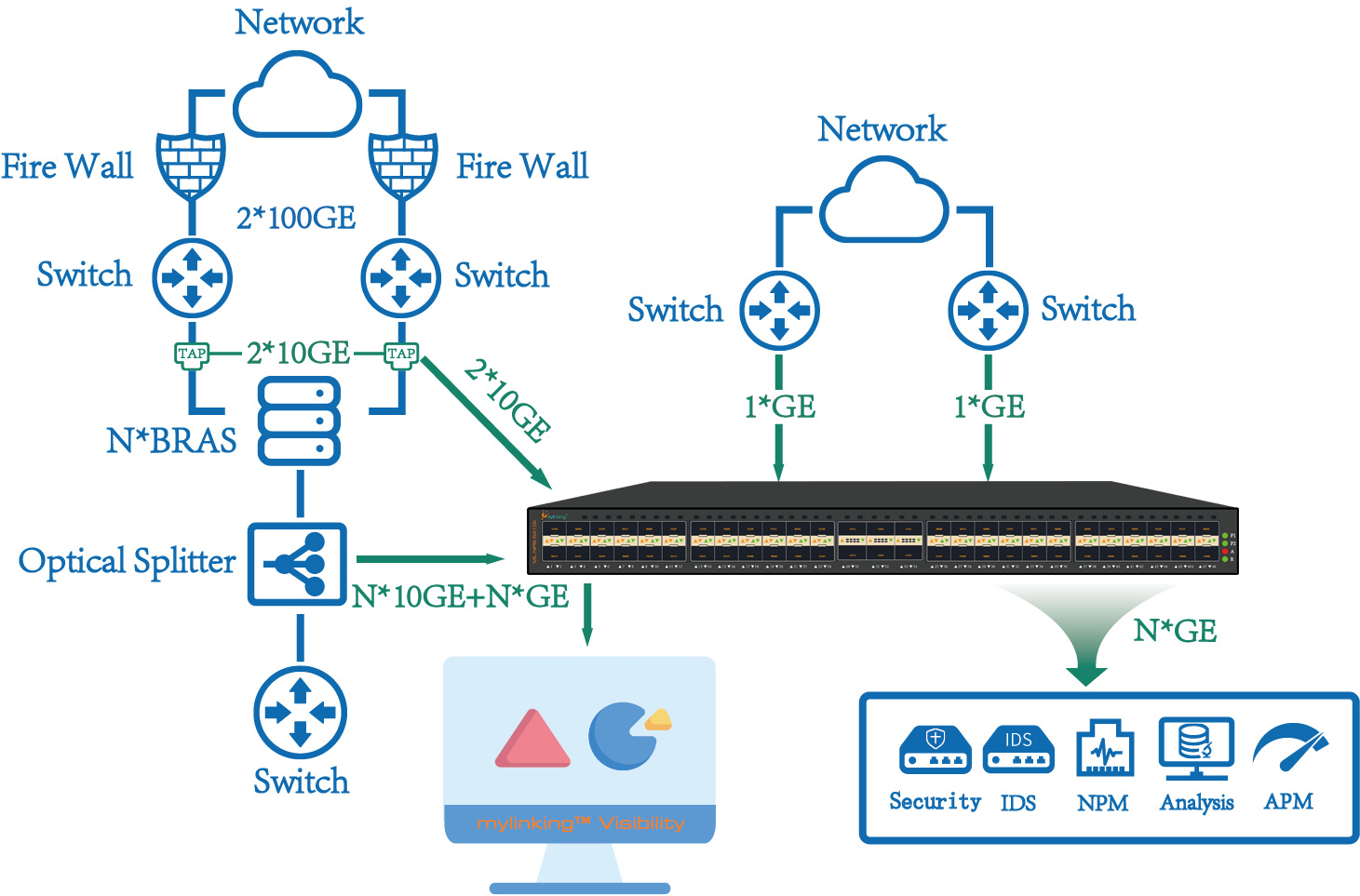

3.1 Tšebeliso ea Pokello e Akaretsang/Tšebeliso ea Kopano (joalo ka e latelang)

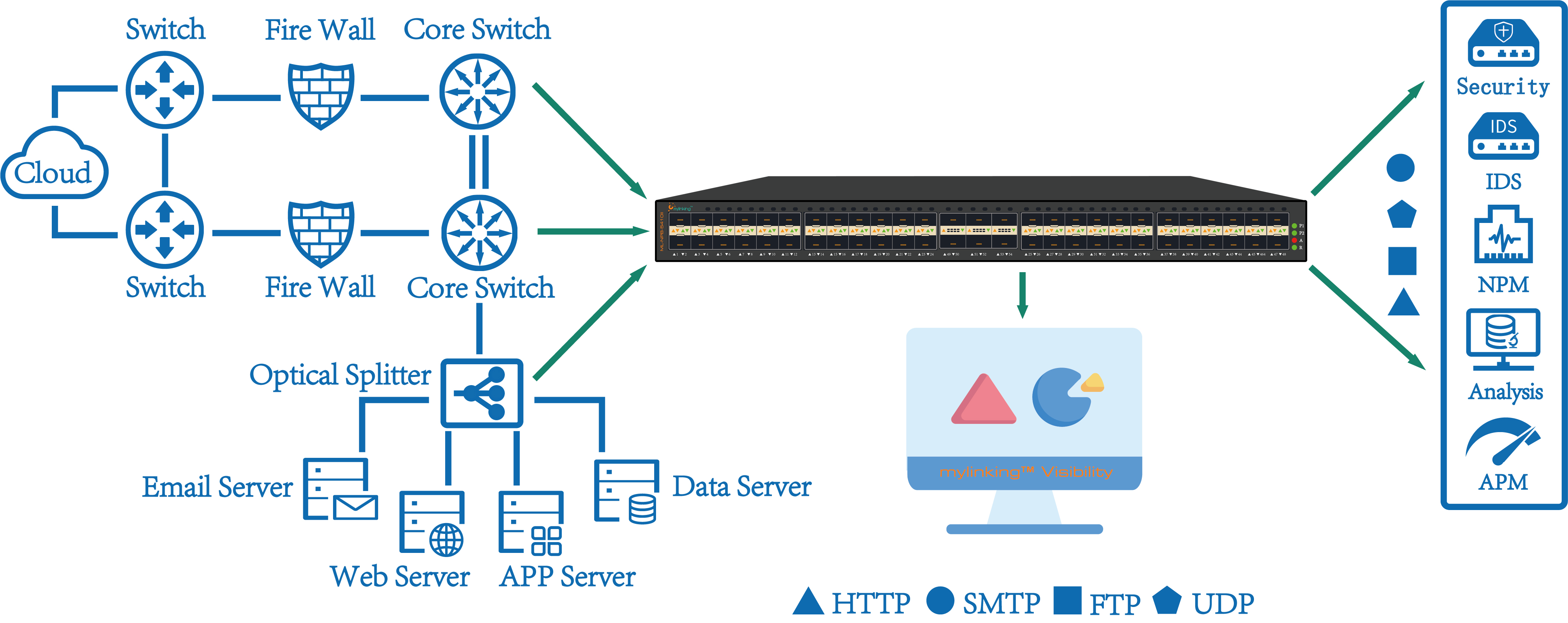

3.2 Kopo ea Kemiso e Kopaneng (joalo ka e latelang)
4-Litlhaloso
| ML-NPB-5410IIMolebeli oa Pakete ea Marang-rang ea Mylinking™ TAP/NPB Liparamitha tse sebetsang | |
| Sebopeho sa Khoebo | |
| Litlhaloso tsa sebopeho | Likou tse 48 tsa SFP+, likou tse 6 tsa QSFP28 |
| Sekhahla sa sebopeho | E tšehetsa litefiso tsa GE, 10GE, 25GE, 40GE, le 100GE |
| Mojule oa phihlello | QSFP28 module ea optical e ka kenngoang ka har'a plug |
| Mojule oa optical/elekthroniki o ka plugang oa SFP+ | |
| Li-interface tsa 40GE/100GE li ka aroloa ka li-interface tse 4 x 10GE/25GE | |
| Phetiso ea faeba e le 'ngoe | E tšehelitsoe |
| Single faeba amohela | E tšehelitsoe |
| Sebopeho sa FEC | Li-interface tsa 100GE li tšehetsa FEC (Tokiso ea Phoso ea Pele) |
| Ho sebetsaTshebetso | |
| Tshebetso ka kakaretso | E ka sebetsa ka botlalo, tlhahiso ea 1080Gbps + tlhahiso ea 1080Gbps |
| Tshebetso ea koung | Kou e 'ngoe le e 'ngoe e ka sebetsa ka lebelo la mohala oa 100% |
| Boitsebiso ba Lipakete | |
| E ka khetholla lipakete tse ngotsoeng ka VLAN, QinQ, le MPLS | |
| E ka khetholla lipakete tsa IPv4/IPv6 | |
| E ka khetholla lipakete tsa VxLAN, GRE, GTP, IPoverIP le lipakete tse ling tsa kotopo | |
| E ka khetholla lipakete tsa likaroloana tsa IP | |
| Melaetsa e meng e ka khetholloa ka ho sebelisa li-signature tsa offset tse ikhethileng (UDB) | |
| Lipakete Ho sefa | |
| Palo ea melao e kentsweng | Melao ea tšehetso ea maske Palo ea melao ea sehlopha sa yuniti: 9,000 Palo ea melao e tloaelehileng ea li-fintuple tse hlano: 4000 Palo ea melao ea lihlopha tse ngata tse kopaneng: 1500 (tlhaloso ea pakete ea kotopo e koetsoe) Palo ea melao ea lihlopha tse ngata tse kopaneng: 1000 (tlhaloso ea pakete ea kotopo e nolofalitsoe) |
| Molao oa Tuple | Kou ea ho kenya |
| Aterese ea MAC ea mohloli/eo u eang ho eona | |
| Boitsebiso ba VLAN | |
| Tšimo ea Mofuta oa Ethernet | |
| Bolelele ba pakete | |
| Mofuta oa protocol ea lera la 3 | |
| Liaterese tsa IP tsa kantle/ka hare le tsa moo li eang teng kapa likarolo tsa aterese (lera le ka ntle kapa le ka hare la kotopo) | |
| Kou ea mohloli/sebaka sa ho ea kapa sebaka sa kou ea TCP/UDP | |
| Folakha ea TCP | |
| Ho tšoaea karoloana ea IP | |
| Leiboleng la phallo ea IPv6 | |
| Bolelele ba pakete | |
| Bolelele bo sebetsang ba ho tšoaea IP TOS/DSCP/ECN/TCP | |
| Tshaeno e hlalositsoeng ke mosebelisi (UDB), ka har'a li-byte tse 128 tsa pele tsa molaetsa, ho fihla ho li-byte tse 4 lia bapisoa, 'me li ka emisoa | |
| Melao e Kopaneng | E tšehetsa ho bapisa molao oa lihlopha tse ngata o boletsoeng ka holimo |
| Phetoho ea molaetsa | |
| Ho Koaheloa ha Kotopo | Tšehetsa ho hlobola ha molaetsa oa kotopo ka hlooho (VxLAN, GRE, GTP, ERSPAN) |
| Ho felisoa ha molaetsa oa kotopo | E tšehetsa ho felisoa ha kotopo ea GRE, koung e 'ngoe le e 'ngoe ea sesebelisoa e ka hlophisoa ka bonngoe ka liaterese tse 16 tsa IP |
| Ho nkela aterese ea MAC sebaka | Fetola sepheo sa MAC |
| Fetola mohloli oa MAC ho ea koung ea tlhahiso ea MAC | |
| Ho sebetsana le li-tag | Tšehetsa ho hlobola li-tag tsa VLAN (ho fihlela ho mekhahlelo e 2) |
| Tšehetso ea ho tlosa mabitso a MPLS (ho fihlela ho mekhahlelo e 6) | |
| Tšehetsa ho eketsa li-tag tsa VLAN | |
| Ho Fetisetsa Pakete | |
| Lethathamo le letšo le lethathamo le letšo | Tšehetsa ho fetisetsa melaetsa (lethathamong le letšo) kapa ho lahla mesebetsi (lethathamong le letšo) |
| Ho Leka-lekanya Mojaro | E tšehetsa tlhahiso ea ho leka-lekanya mojaro e thehiloeng mohloling o tšoanang oa HASH le sebaka se tšoanang sa ho ea moo: SIPDIPSIP + SPortDIP + DPortSIP + DIPSIP + SPort + DIP + DPort |
| E tšehetsa lihlopha tse fihlang ho tse 64 tsa tlhahiso, 'me palo ea litho sehlopheng ka seng e ka fapana | |
| Tšehetsa ho leka-lekanya mojaro oa HASH le tlhahiso ea ho fapanyetsana | |
| E tšehetsa ho romela sephethephethe se tšoanang sa mohloli ho lihlopha tse ngata tsa koung tse leka-lekaneng tsa mojaro ka nako e le 'ngoe | |
| E tšehetsa pokello ea sephethephethe sa likou tse ngata 'me e e romela lihlopheng tse ngata tsa likou tse leka-lekaneng tsa mojaro ka nako e le' ngoe | |
| Molaetsa o sa tsejoeng | Ka tlwaelo, dipakete tsohle di a lahlwa, mme tlhahiso ya ho fetisetsa e ka bewa. |
| Phallo ea Lintlha | Tšehetsa pokello ea li-port tse ngata |
| Tšehetsa ho pheta-pheta/ho arola tlhahiso ea likou tse ngata | |
| Tlhophiso ea Tsamaiso | |
| Sebopeho sa tsamaiso | E fana ka li-interface tse peli tse feto-fetohang tsa 10/100/1000M, e 'ngoe le e 'ngoe e na le aterese ea eona ea IP |
| E fana ka sebopeho sa taolo sa CONSOLE se le seng | |
| Tumellano ea Tsamaiso | Tšehetsa protocol ea HTTPS (sebopeho sa webo) |
| Tšehetsa protocol ea SSH (sebopeho sa CLI) | |
| Tšehetsa protocol ea SNMP V1/V2c/V3 | |
| Ho kenya alamo | Kenya li-alamo ka mafolofolo ka SNMP Trap |
| Ntlafatso ea hole | Tšehetsa ntlafatso ea software ea webo/SSH e hole |
| Phihlello e hole | E tšehetsa phihlello e hole ka li-router tse nang le li-hop tse ngata |
| Ho rekota lifate | E tšehetsa ho rekota maemo ohle, lialamo, liketsahalo tsa sistimi le ts'ebetso ea bohlokoa |
| Nako ea ho boloka lirekoto tsa log ke bonyane selemo se le seng | |
| Taolo ea Nako | Tšehetsa ho hokahanya nako ha NTP ho fana ka tekanyetso ea nako bakeng sa ho rekota |
| Potoloho ea RTC e hahiloeng kahare, nako ea ho hloleha ha motlakase oa sesebelisoa ha e lahlehe | |
| Tsamaiso ea Litumello | Tšehetsa taolo ea tumello ea taolo ea basebelisi |
| Tlhophiso ea Tsamaiso | |
| Tšireletso ea Tlhahisoleseling | Likarolo tsa ts'ireletso ea tlhaiso-leseling ea sefofane sa tsamaiso ea tšehetso |
| Faele ea Tlhophiso | Tšehetsa lifaele tsa tlhophiso ea ho kenya/ho romela kantle |
| Mosebetsi oa ho Sebetsamaemo | |
| Matla a ho kenya | Tlhaloso ea AC: 100VAC~240VAC, 192VDC~288VDC (motlakase o phahameng oa DC) |
| Tlhaloso ea DC: -36VDC~ -72VDC | |
| Tšehetsa bekapo ea 1 + 1 ea ho pheta-pheta ha matla | |
| Mokhoa oa ho qhala mocheso | Pholiso ea fene ea chassis e sebetsang |
| Mocheso o sebetsang | 0℃ ~ +45℃，10%~ 95% RH |
| Mocheso oa polokelo | -45℃ ~ +70℃，10%~ 95% RH |
| Tšebeliso ea matla ea mochini oohle | <180W |
| Boima ba mochini | <7kg |
| Boholo ba moamoheli | Ntle le litsebe tse kentsweng: 392 mm (D) × 440 mm (W) × 44 mm (H) |
| Litlhoko tsa ho fetisetsa batho sebakeng seo | Netefatsa hore ho na le sebaka se lekaneng ho potoloha sehokelo sa fene sa sesebediswa le masoba a ho qhala mocheso |
| Tikoloho e nang le moea o kenang hantle ka tlung ntle le khanya ea letsatsi e tobileng | |
| Setifikeiti sa Sehlahisoa | |
| E sireletsa tikoloho | E latela Taelo ea RoHS2.0 (2011/65/EU le 2015/863 EU) |
