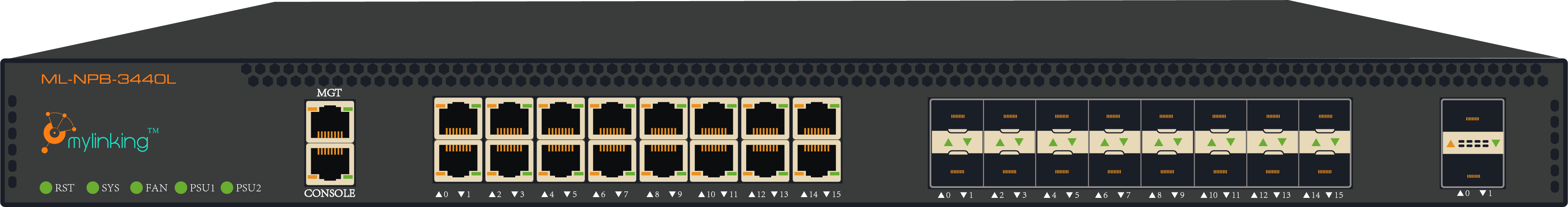

Mylinking™ Network Packet Broker(NPB) ML-NPB-3440L
16*10/100/1000M RJ45, 16*1/10GE SFP+, 1*40G QSFP le 1*40G/100G QSFP28, Max 320Gbps
1-Kakaretso
●Sesebediswa se felletseng sa Ponahalo ya ho Nka Dintlha(16*10/100/1000M RJ45, 16*1/10GE SFP+, 1*40G QSFP le 1*40G/100G QSFP28 boema-kepe)
● Sesebelisoa se feletseng sa Tsamaiso ea Tsamaiso ea Boitsebiso (320Gbps duplex Rx/Tx processing)
● Sesebediswa se felletseng sa pele ho tshebetso le ho aba hape(bidirectional bandwidth 320Gbps)
● Tšehetso ea ho nka sephethephethe le ho amohela lintlha tsa lihokelo ho tsoa libakeng tse fapaneng tsa marang-rang
● Tšehetso ea ho nka sephethephethe le ho amoheloa ha data ea lihokelo ho tsoa ho li-switch routing node tse fapaneng
●Pakete e tala e tšehelitsoeng e bokelloe, e khethoe, ea hlahlobisisoa, ea khutsufatsoa ka lipalo-palo le ho tšoauoa.
● E ts'ehelitsoe ho hlokomela liphutheloana tse sa sebetseng tsa phetisetso ea sephethephethe sa Ethernet, e ts'ehetsa mefuta eohle ea liprothokhole tsa ho paka tsa Ethernet, le aslo 802.1q/q-in-q, IPX/SPX, MPLS, PPPO, ISL, GRE, PPTP jj.
● Pakete e tala e tšehelitsoeng bakeng sa lisebelisoa tsa ho shebella BigData Analysis, Tlhahlobo ea Protocol, Tlhahlobo ea Matšoao, Tlhahlobo ea Tšireletso, Taolo ea Likotsi le sephethephethe se seng se hlokahalang.
● Ts'ehetso ea tlhahlobo ea pakete ea nako ea sebele, boitsebiso ba mohloli oa data
2-Bokhoni ba ho Etsa Sephethephethe se Bohlale
CPU e hloekileng ea China Chip Plus Multicore
320Gbps bokhoni ba ho sebetsana le sephethephethe se bohlale
100GE Ho nkuoa ha data
16 * 10/100/1000M RJ45, 16 * 1/10GE SFP +, 1 * 40G QSFP le 1 * 40G/100G QSFP28 likoung tsa Rx/Tx duplex processing, ho fihlela ho 320bps Traffic Data Transceiver ka nako e le 'ngoe, bakeng sa marang-rang a Data Capturing. Ho sebetsa pele
Replication ea data
Pakete e hatisitsoeng ho tloha boema-kepeng ba 1 ho ea ho likou tse ngata tsa N, kapa likou tse ngata tsa N tse kopantsoeng, ebe li kopitsoa ho li-M tse ngata.
Khokahano ea Lintlha
Pakete e hatisitsoeng ho tloha boema-kepeng ba 1 ho ea ho likou tse ngata tsa N, kapa likou tse ngata tsa N tse kopantsoeng, ebe li kopitsoa ho li-M tse ngata.
Kabo ea Lintlha
E hlophisitse medata e kenang ka nepo, 'me ea lahla kapa ea fetisetsa lits'ebeletso tse fapaneng tsa data ho li-interface tse ngata ho latela lenane le lesoeu, lethathamo la batho ba sa sebetseng kapa melao e boletsoeng esale pele ea mosebelisi.
Tlhophiso ea Lintlha
Sephethephethe sa data se kentsoeng se ka aroloa ka nepo, 'me lits'ebeletso tse fapaneng tsa data li ka lahloa kapa tsa fetisetsoa ho tlhahiso ea li-interfaces tse ngata ka melao ea whitelist kapa blacklist. Motsoako o feto-fetohang oa lintho tse joalo ka Mofuta oa Ethernet, tag ea VLAN, TTL, IP-tuple, IP fragmentation, tsebiso ea folakha ea TCP, litšobotsi tsa molaetsa, joalo-joalo ho fihlela litlhoko tsa phepelo ea lisebelisoa tse fapaneng tsa ts'ireletso ea marang-rang, tlhahlobo ea protocol, tlhahlobo ea matšoao, tlhahlobo ea sephethephethe. joalo joalo
Load Balance
E ts'ehetsoeng ho leka-lekanya mojaro Hash algorithm le algorithm ea ho arolelana boima ba 'mele ho latela litšobotsi tsa L2-L7 ho netefatsa hore sephethephethe sa koung se matla sa ho leka-lekanya mojaro.
VLAN e tšoailoe
VLAN Untagged
VLAN e fetotsoe
E tšehelitse ho bapisa karolo efe kapa efe ea bohlokoa ho li-byte tsa pele tse 128 tsa pakete. Mosebelisi a ka iketsetsa boleng ba offset le bolelele ba tšimo le litaba, 'me a khetha leano la tlhahiso ea sephethephethe ho latela tlhophiso ea mosebelisi.
Phetiso ea Fiber e le 'ngoe
Ts'ehetsa phetisetso ea fiber e le 'ngoe ka litheko tsa boema-kepe tsa 10 G, 40 G, le 100 G ho fihlela litlhoko tse amohelang data ea fiber e le 'ngoe ea lisebelisoa tse ling tsa morao-rao le ho fokotsa litšenyehelo tsa ho kenya lisebelisoa tsa thuso ea fiber ha palo e kholo ea likhokahano e hloka ho ho tšoaroa le ho ajoa
100G & 40G Port Breakout
Ts'ehetso ea ho phatloha ho likoung tsa 100G kapa 40G tse nang le 4 * 25GE kapa 4 * 10GE likoung bakeng sa litlhoko tse khethehileng tsa phihlello.
Data Slicing
Ho seha ho tšehelitsoeng ka leano (64-1518 bytes ka boikhethelo) ba data e tala, 'me leano la tlhahiso ea sephethephethe le ka kengoa ts'ebetsong ho ipapisitsoe le tlhophiso ea basebelisi.
Tsebahatsa Protocol ea Tunneling
E tšehetsoa ka tsela e iketsang hlwaya diprothokholo tse fapa-fapaneng tunneling tse kang: VxLAN, GRE、ERSPAN、MPLS、IPinIP、GTP, joalo-joalo Ho ea ka tlhophiso ya mosebedisi, leano dipholo tsa sephethephethe ka kenngwa tshebetsong ho ea ka lera ka hare kapa ka ntle ea kotopo.
Pheliso ea Pakete ea Tunnel
Ts'ebetso e ts'ehelitsoeng ea ho emisa pakete ea kotopo, e ka hlophisang aterese ea IP / mask boema-kepeng ba ho kenya sephethephethe, 'me ka kotloloho e romele sephethephethe se hlokang ho bokelloa marang-rang a mosebelisi boema-kepeng ba ho fumana lisebelisoa ka mekhoa ea ho kenyelletsa kotopo joalo ka GRE, GTP, VXLAN le joalo-joalo.
Nako ea Stamping
E tšehelitsoe ho hokahanya seva ea NTP ho lokisa nako le ho ngola molaetsa ka har'a pakete ka mokhoa oa tag ea nako e nang le setempe sa linako qetellong ea foreimi, ka ho nepahala ha li-nanoseconds.
Ho hapa Pakete
Boemo ba boema-kepe bo ts'ehelitsoeng, ho ts'oaroa ha pakete ea boemo ba leano ho tsoa mohloling oa boema-kepe ka har'a sethala sa lebala la Li-Tuple tse hlano ka nako ea nnete.
Ponahalo ea Sephethephethe
E ts'ehelitse ts'ebetso eohle ea ponahalo ea phallo ea data ho tloha ho amohela le ho hapa, ho tsebahatsa le ho sebetsa, kemiso le taolo, kabo ea phallo e ka phethahala. Ka sebopeho se kopanetsoeng se nang le botsoalle, lets'oao le sa bonahaleng la data le fetoloa hore e be ntho e bonahalang, e laolehang le e laolehang ka tlhahiso ea lipono tse ngata le tse fapaneng tsa sebopeho sa sebopeho sa sephethephethe, kabo ea sephethephethe sa marang-rang, boemo ba ts'ebetso ea boitsebahatso ba pakete, mekhoa e fapaneng ea sephethephethe, le kamano. pakeng tsa sephethephethe le nako kapa khoebo.
VxLAN, VLAN, MPLS, GTP, GRE Header Stripping
E tšehelitse VxLAN, VLAN, MPLS, GTP, GRE ho roala hlooho ho fetisetsa pakete ea data ea mantlha.
Pakete Encapsulation Output
Ts'ehetsoeng sephethephethe se hapuoeng se ka hlahisoa ka mor'a ho kenngoa ka ntle. Ts'ebetso ena e ka hlahisa pakete efe kapa efe e boletsoeng sephethephetheng se hapiloeng ho sistimi ea morao-rao kapa sesebelisoa sa marang-rang ka mor'a hlooho ea ERSPAN encapsulation.
Pakete ea Pele ea Phatlalatso
E tšehelitse tlhaloso ea lipakete tsa data tse tlang pele ho latela bohlokoa ba ts'ebeletso boema-kepeng bo kenang, 'me lipakete tsa pele-pele li fetisetsoa pele ho tlhahiso. Ka mor'a hore liphutheloana tsa bohlokoa tse phahameng li fetisetsoe, liphutheloana tse ling tsa boemo bo bohareng le tse tlaase li fetisetsoa pele. Qoba alamo ea sistimi e bakiloeng ke ho haella ha lipakete tsa data tsa bohlokoa.
Khaello ea Sephetho sa Boema-kepe
E ts'ehelitse ts'ebetso ea mantlha le ea bobeli ea boema-kepe ba phallo ea sephethephethe, e ka fetolelang sephethephethe ho ea koung ea bobeli ha boemo ba boema-kepe ba mantlha bo sa tloaeleha (haufi / sehokela tlase), e le ho netefatsa ts'epo e phahameng ea tlhahiso ea sephethephethe.
Mylinking™ Network Visibility Platform
Tšehetso ea Mylinking™ Matrix-SDN Visibility Control Platform Access
1+1 Redundant Power System(RPS)
E tšehelitsoe ke 1+1 Dual Redundant Power System
3-Mylinking™ Network Packet Broker
3.1 Mylinking™ Network Packet Broker Centralized Collection Replication/Aggregation Application(e latelang)
3.2 Mylinking™ Network Packet Broker Unified Schedule kopo(e latelang)
3.3 Tšebeliso ea Mylinking™ Network Packet Broker Data Slicing(e latelang)
3.4 Mylinking™ Network Packet Broker Data VLAN Tagged Application(e latelang)
4-Litlhaloso
| Mylinking™ Network Packet Broker TAP/NPB MosebetsialMekhahlelo | |||
| Sebopeho sa Marang-rang | 10/100/1000M RJ45 Ethernet | 16 boema-kepe ba RJ45 | |
| 1/10G SFP+ | 16 SFP + slots | ||
| 40G QSFP | 1 QSFP slot | ||
| 100G QSFP28 (e lumellana le 40G) | 1 QSFP28 slot | ||
| Out-of-band laola segokanyimmediamentsi sa sebolokigolo | 1 * 10/100/1000M koporo | ||
| Deploy Mode | Fiber Tap | Tšehetso | |
| Seipone span | Tšehetso | ||
| Mosebetsi oa tsamaiso | Tsamaiso ea Sephethephethe | Sephethephethe Replicating/Aggregating/Distribution | Tšehetso |
| Mojaro-Ho leka-lekanya | Tšehetso | ||
| Sefe se ipapisitseng le IP/Protocol/Port Quintuple Traffic Identification | Tšehetso | ||
| VLAN tag/untagged/replace | Tšehetso | ||
| Pheliso ea Pakete ea Tunnel | Tšehetso | ||
| Nako ea Stamping | Tšehetso | ||
| Ho hlobolisa Hlooho ea Pakete | VxLAN, VLAN, MPLS, GRE, GTP, joalo-joalo. | ||
| Pakete Encapsulation Output | Tšehetso | ||
| Data Slicing | Tšehetso | ||
| Identification Protocol | Tšehetso | ||
| Pheliso ea Pakete ea Tunnel | Tšehetso | ||
| Khaello ea Sephetho sa Boema-kepe | Tšehetso | ||
| Phetiso ea Fiber e le 'ngoe | Tšehetso | ||
| Boipuso ba Pakete ea Ethernet | Tšehetso | ||
| Port Breakout | Tšehetso | ||
| Pakete ea Pele ea Phatlalatso | Tšehetso | ||
| Bokhoni ba ho sebetsa | 320Gbps | ||
| Tsamaiso | TŠELISO MGT | Tšehetso | |
| IP/WEB MGT | Tšehetso | ||
| SNMP MGT | Tšehetso | ||
| TELNET/SSH MGT | Tšehetso | ||
| SYSLOG Protocol | Tšehetso | ||
| RADIUS kapa Tacacs+ Centralized Authorization | Tšehetso | ||
| Netefatso ea mosebelisi | Netefatso e ipapisitse le lebitso la mosebelisi le password | ||
| Motlakase (1+1 Redundant Power System-RPS) | Rated Power Supply Voltage | AC110~240V/DC-48V[Ka boikhethelo] | |
| Rated Power Frequency | AC-50HZ | ||
| Kenyelletso ea Hona Joale | AC-3A / DC-10A | ||
| Rated Function Power | Boholo ba 200W | ||
| Tikoloho | Mocheso oa ho sebetsa | 0℃50℃ | |
| Mocheso oa polokelo | -20-70 ℃ | ||
| Mongobo o sebetsang | 10% -95%, Ha ho Condensation | ||
| Mosebelisi Configuration | Configuration ea Console | RS232 interface,115200,8,N,1 | |
| Netefatso ea Lekunutu | Tšehetso | ||
| Bophahamo ba Chassis | Sebaka sa Maraka (U) | 1U 445mm*505mm*44mm | |
